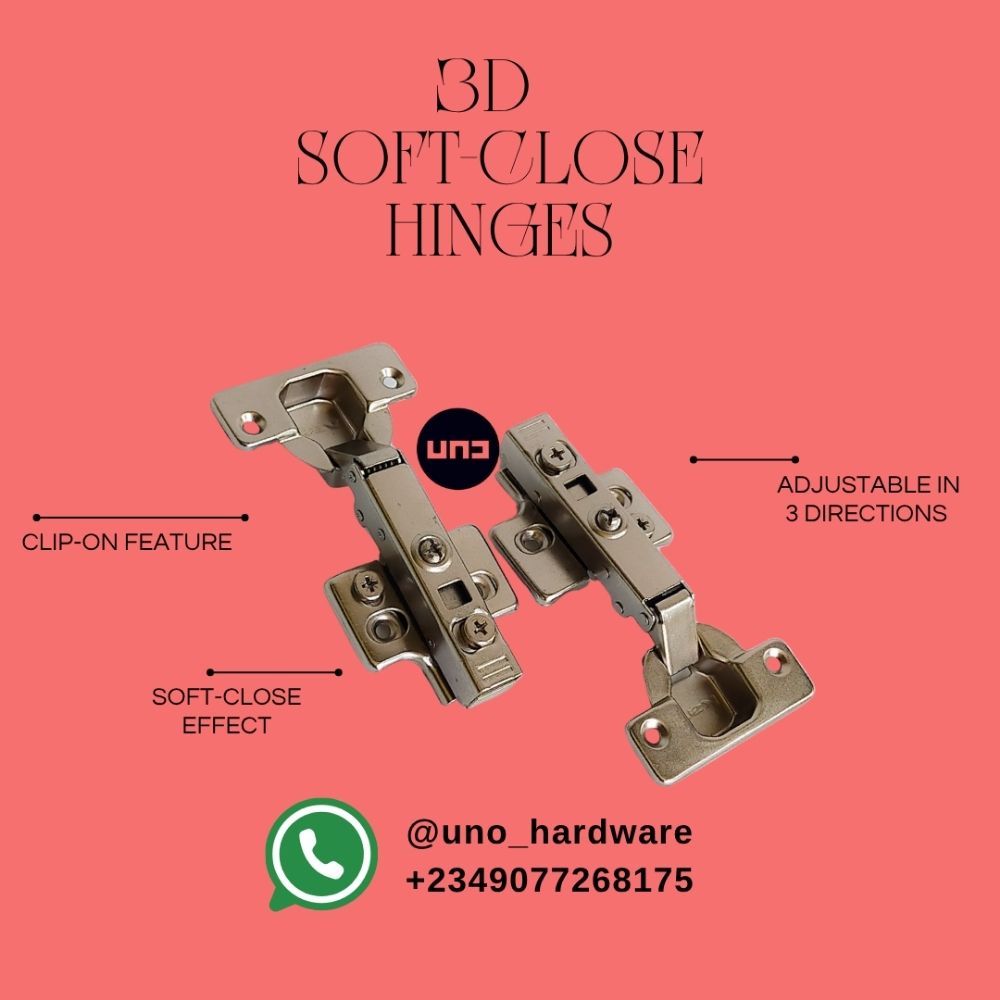

The 3D soft-close cabinet hinge is the most-ordered hinge in the Uno Hardware catalogue. Precision-engineered from heavy-duty cold-rolled steel and finished in lustrous nickel, it delivers the perfect combination of strength, silent operation, and long-term durability. The integrated soft-close mechanism ensures every door closure is gentle and noiseless, while the clip-on system allows tool-free door removal and reinstallation. With 3D adjustability, perfect door alignment is achieved without the need to remove and re-drill.
Key Features
- Whisper-Quiet Soft-Close — Integrated hydraulic dampener catches the door before it slams, guiding it gently and silently closed every time — protects both the door and the cabinet frame.
- 3D Adjustability — Fine-tune door alignment in three directions after installation — vertical, horizontal, and depth — without removing the hinge from the cabinet.
- Clip-On Installation — Snaps onto a pre-installed mounting plate for fast, tool-free removal and reinstallation — ideal for painting, cleaning, or renovation work.
- Nickel-Plated Finish — Electroplated nickel coating provides excellent corrosion resistance in humid kitchen and bathroom environments.
- 50,000 Cycle Tested — Tested to perform reliably through 50,000 opening and closing cycles under full load — built for decades of daily use.
Specifications
- Material: Cold-rolled steel (CRCA)
- Finish: Nickel plated
- Type: Full overlay concealed hinge
- Mechanism: Integrated soft-close
- Installation: Clip-on system
- Adjustment: 3D (vertical, horizontal, depth)
- Cup diameter: 35mm
- Opening angle: 98°–110°
- Panel thickness: 14mm–22mm
- Durability: 50,000+ cycles
- Package: 2 hinges with mounting plates and screws
What It Is Best Used For
Ideal for kitchen cabinet doors, wardrobe doors, bathroom cabinets, and built-in furniture. Suitable for full overlay, half overlay, and inset cabinet configurations. Recommended for both residential home projects and high-volume commercial furniture manufacturing.
Installation Note
Requires a 35mm hinge cup hole drilled into the cabinet door at the specified depth. Snap the hinge onto the pre-installed mounting plate and adjust the 3 screws for perfect door alignment. Contact our team on WhatsApp if you need guidance before installing.
Frequently Asked Questions
Q: Do these hinges work for both kitchen and wardrobe cabinets?
Yes. The full overlay design and 3D adjustability make them suitable for kitchen cabinets, wardrobe doors, bathroom vanities, and virtually any hinged cabinet application.
Q: How do I adjust the door alignment after installation?
Each hinge has three adjustment screws. The side screw adjusts horizontal position, the height screw adjusts vertical position, and the depth screw adjusts how far the door sits from the cabinet frame — all without removing the hinge.
Q: Can I remove the door easily after installation?
Yes. The clip-on system allows you to press a release tab and lift the door off the mounting plates in seconds — and reattach it just as easily. No tools required.
